| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DV04028_12E | -FG / RD | B | 12 | 7.0 to 13.2 | 0.10 | 1.20 | 8000 | 0.261 | 9.20 | 9.30 | 0.366 | 31.3 | 120000 |
| DV04028_12L | -FG / RD | B | 12 | 7.0 to 13.2 | 0.15 | 1.80 | 10000 | 0.340 | 12.00 | 14.60 | 0.575 | 36.5 | 120000 |
| DV04028_12M | -FG / RD | B | 12 | 7.0 to 13.2 | 0.20 | 2.40 | 12000 | 0.408 | 14.40 | 20.31 | 0.800 | 41.3 | 120000 |
| DV04028_12H | -FG / RD | B | 12 | 7.0 to 13.2 | 0.30 | 3.60 | 14000 | 0.481 | 17.00 | 27.60 | 1.087 | 45.4 | 110000 |
| DV04028_12U | -FG / RD | B | 12 | 7.0 to 13.2 | 0.46 | 5.52 | 165000 | 0.581 | 20.50 | 37.30 | 1.469 | 48.8 | 100000 |

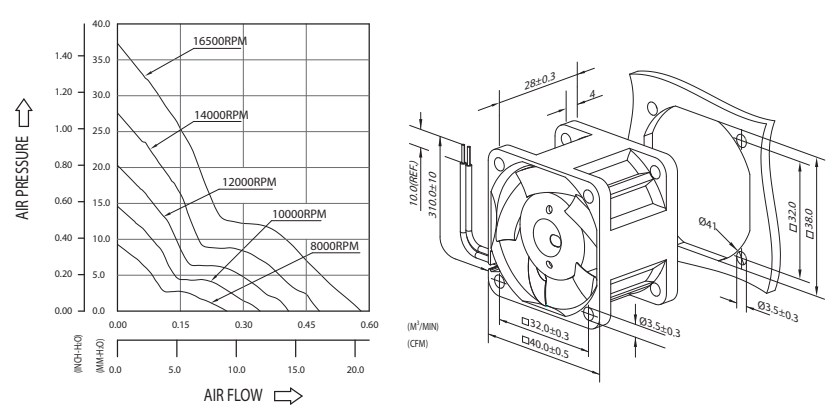

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
