DS08015
DS SERIES80x80x15 mm12v,24v - Material: lmpeller & Frame: Plastic (UL 94V-0)
- Lead Wires: UL 1007 AWG #26 or Equivalent
- Impeller:9 Blades
- Rotational direction CCW view from front face
- Weight: 55g (1.45 0Z)

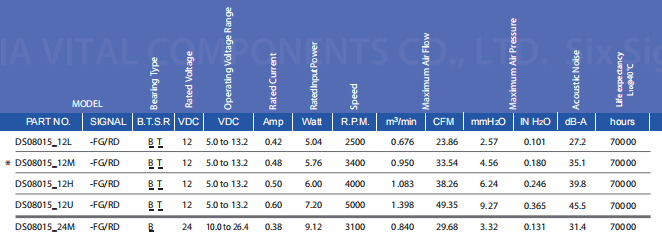

Specification

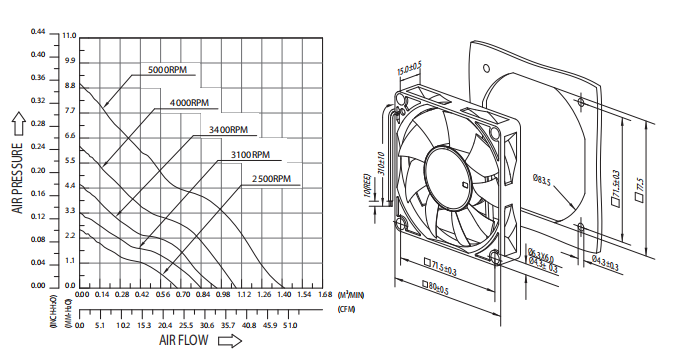

Product P&Q Curve Dimension Drawing
