DS07025
DS SERIES70x70x25 mm - Material: lmpeller & Frame: Plastic (UL 94V-0)
- Lead Wires: UL 1061 AWG #26 or Equivalent
- Impeller: 7 Blades
- Rotational direction CCW view from front face
- Weight: 67g (2.36 0Z)

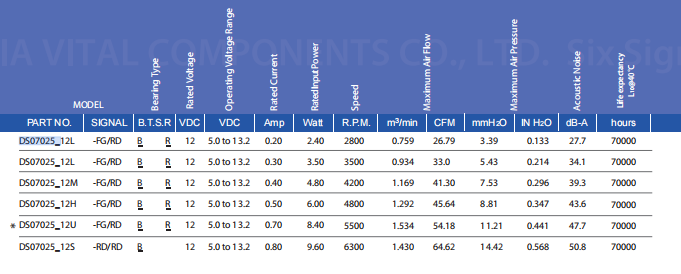

Specification

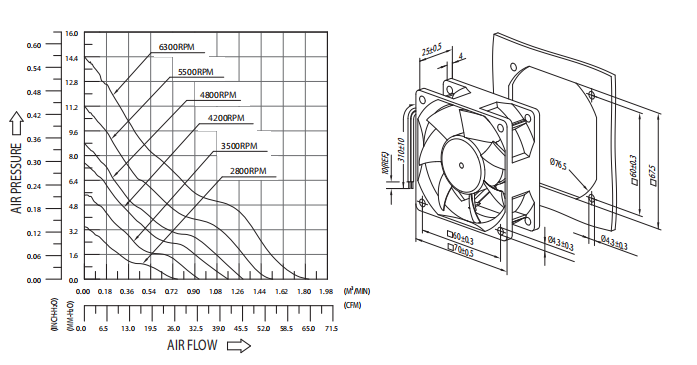

Product P&Q Curve Dimension Drawing
