| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DS04020_12L | -FG / RD |
B R | 12 | 7.0 to 13.2 | 0.10 |
1.20 |
4500 |
0.155 |
5.48 |
2.64 |
0.104 |
22.3 |
70000 |
| DS04020_12M | -FG / RD | B R | 12 | 7.0 to 13.2 | 0.15 | 1.80 | 6200 | 0.208 | 7.35 | 5.12 | 0.202 | 26.5 | 70000 |
| DS04020_12H | -FG / RD | B R | 12 | 7.0 to 13.2 | 0.20 | 2.40 | 7600 | 0.265 | 9.37 | 7.46 | 0.294 | 32.2 | 70000 |
| DS04020_12U | -FG / RD | B R | 12 | 7.0 to 13.2 | 0.25 | 3.00 | 9000 | 0.312 | 11.01 | 9.88 | 0.389 | 36.7 | 70000 |
| DS04020_12S | -FG / RD | B R | 12 | 7.0 to 13.2 | 0.40 | 4.80 | 13000 | 0.450 | 15.90 | 20.31 | 0.799 | 46.2 | 70000 |
| DS04020_24S | -FG / RD | B R | 12 | 7.0 to 13.2 | 0.30 | 7.20 | 10500 | 0.363 | 12.8 | 12.68 | 0.499 | 40.2 | 70000 |

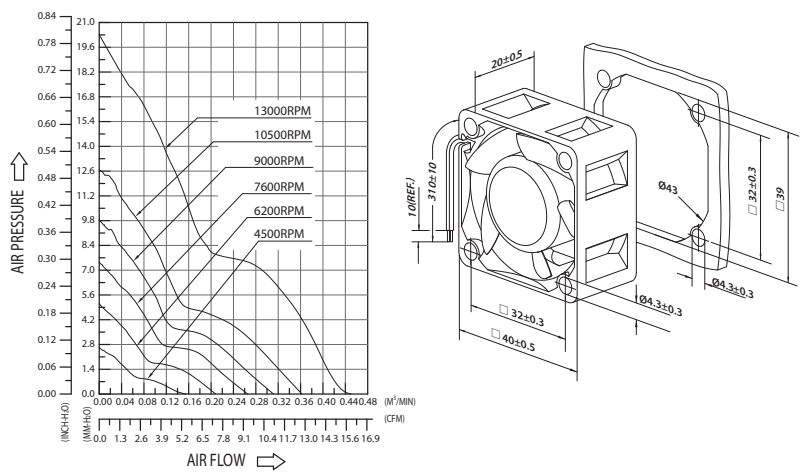

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
