| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DFTA0456_2M | -FG / RD | B | 12 | 7.0 to 13.2 | 0.8 | 9.6 | 16500 | 0.738 | 26.06 | 61.74 | 2.43 | 63.5 | 70000 |
| DFTA0456_2H |
-FG / RD | B | 12 | 7.0 to 13.2 | 1.0 |
12.0 |
17100 |
0.793 |
28.00 |
68.33 |
2.69 |
64.0 |
70000 |
| DFTA0456_2U |
-FG / RD | B | 12 | 7.0 to 13.2 | 1.3 |
15.6 |
18000 |
0.812 |
28.68 |
71.91 |
2.83 |
64.5 |
70000 |
|

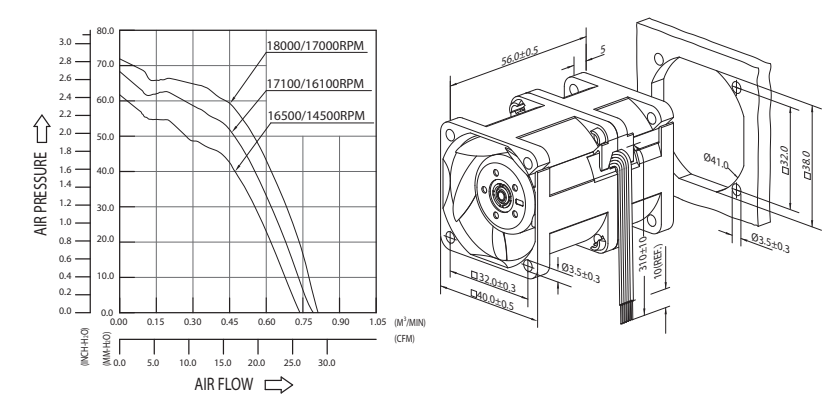

Product P&Q Curve Dimension Drawing P&Q曲线图 尺寸图 |
|||||||||||||
|
|
|||||||||||||
