| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DFPJ0456_2U | -FG / RD | B | 12 | 10.8 to 13.2 | 1.08 | 10.80 | 21350/21000 | 0.619 | 23.01 | 105.95 | 4.171 | 64.5 | 70000 |
| DFPJ0456_2S |
-FG / RD | B | 12 | 10.8 to 13.2 | 1.95 |
19.44 |
26000/26000 |
0.806 |
28.47 |
158.42 |
6.237 |
69.9 |
70000 |

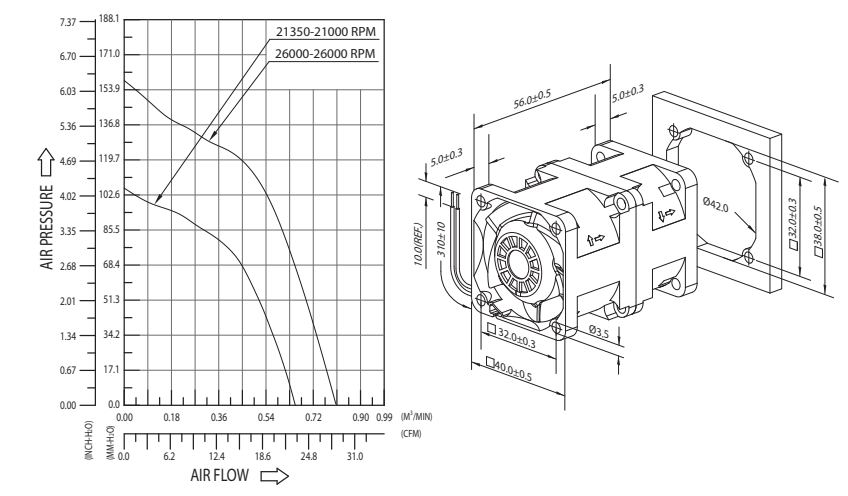

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
