| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPD0838_2U | -FG / RD | B | 12 | 10.8 to 13.2 | 2.75 | 34.38 | 15000 | 3.362 | 118.71 | 112.23 | 4.418 | 70.0 | 70000 |
|

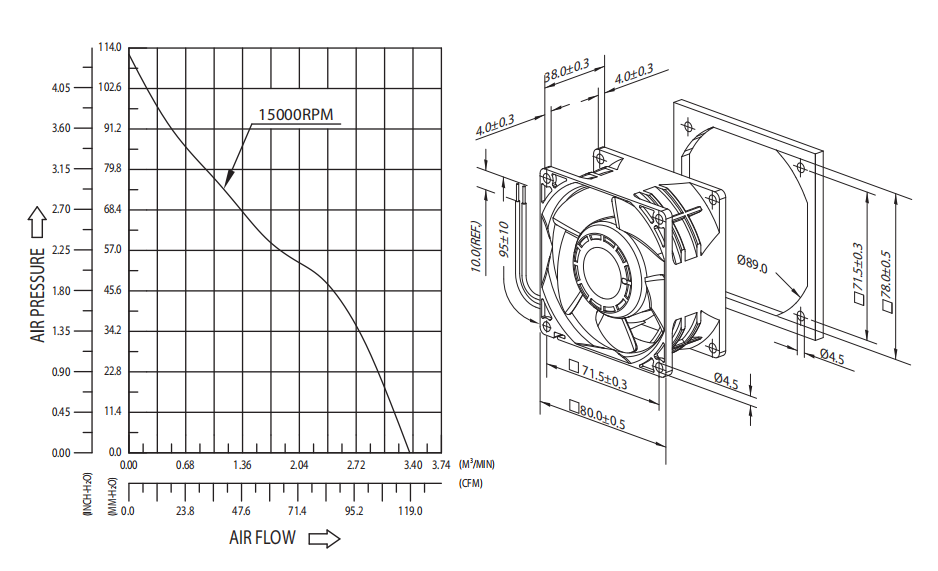

Product P&Q Curve Dimension Drawing P&Q 曲线图 尺寸图 |
|||||||||||||
