DFPG0656
DFPG SERIES60x60x56 mm - Material: lmpeller & Frame: Plastic (UL 94V-0)
- Lead Wires: UL 1007 AWG #24 or Equivalent*Impeller: 5 Blades(lnlet) 4 Blades(Outlet)
- Rotational direction CCW view from front face
- Weight: 165g (5.82 02)

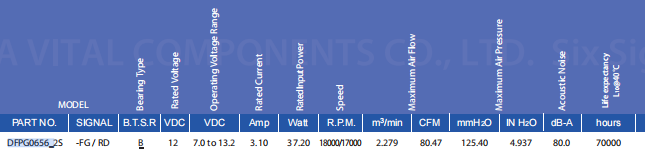

Specification

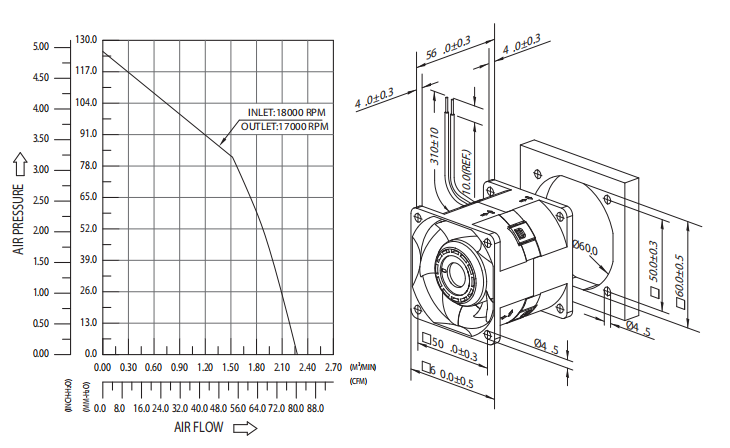

Product P&Q Curve Dimension Drawing
