| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DFPP0656_2S | -FG / RD | B | 12 | 7.0 to 13.2 | 3.10 | 37.20 | 18000/1700 | 2.279 | 80.47 | 125.40 | 4.937 | 80.0 | 70000 |
|

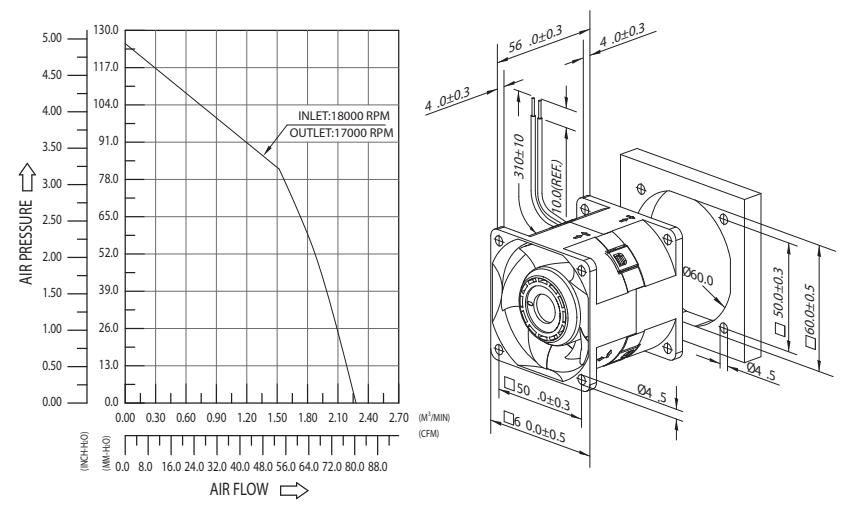

特征曲线 尺寸图 P&Q Curve Dimensions Drawing |
|||||||||||||
|
|
|||||||||||||
