• DFPF0656
  • DFPF0656

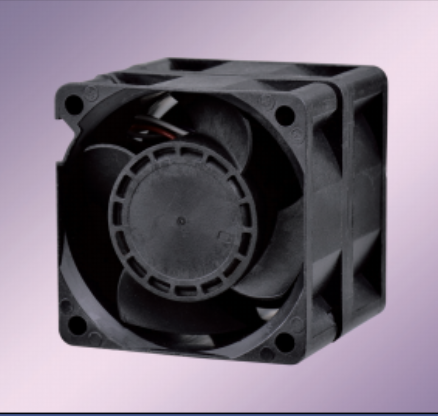

DFPF0656

DFPF  SERIES
60x60x56 mm
  •  Material: lmpeller & Frame: Plastic (UL 94V-0)
  • Lead Wires: UL 1007 AWG #26 or EquivalentImpeller: 5 Bladesinlet,4 Blades outet
  • Rotational direction CCW view from front face
  • Weight: 160g (5.64 02)
  • DFPF0656

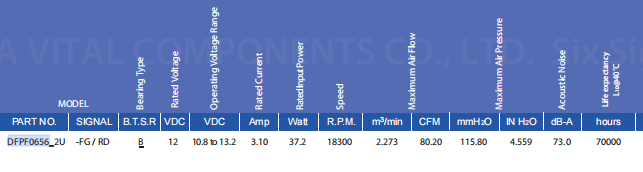

Specification

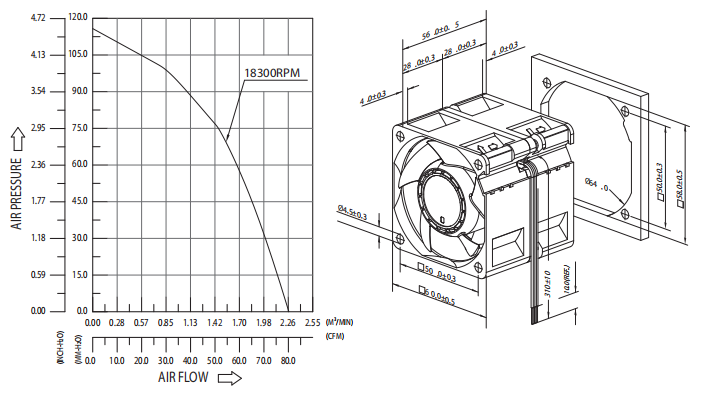

Product P&Q Curve                          Dimension Drawing
