| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DFPD0656_2S | -FG / RD | B | 12 | 7.0 to 13.2 | 2.27 | 22.68 | 18400/17700 | 1.623 | 57.34 | 175.1 | 6.893 | 74 | 70000 |

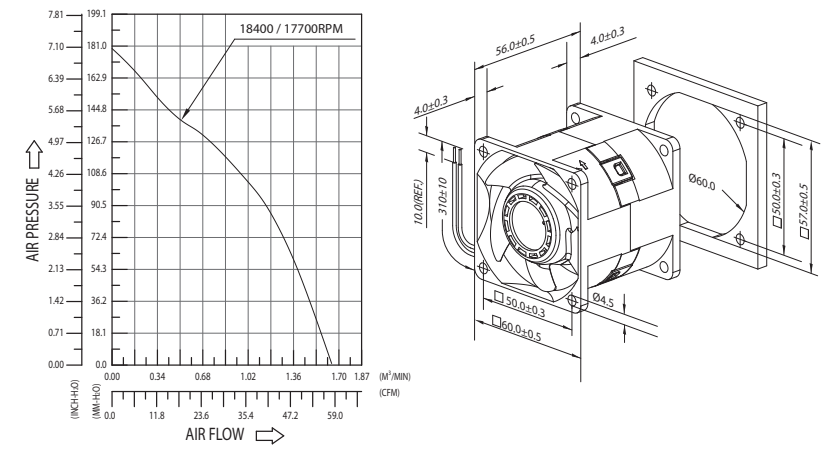

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
