DS07025
DS SERIES
70x70x25 mm - Material: lmpeller & Frame: Plastic (UL 94V-0)*
- Lead Wires: UL 1061 AWG #26 or Equivalent*
- Impeller: 7 Blades
- Rotational direction CCW view from front face
- Weight: 67g (2.36 02)

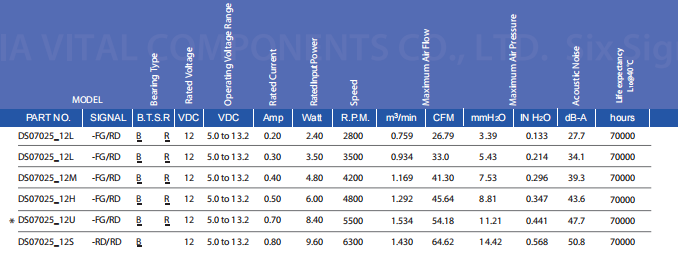

Specification

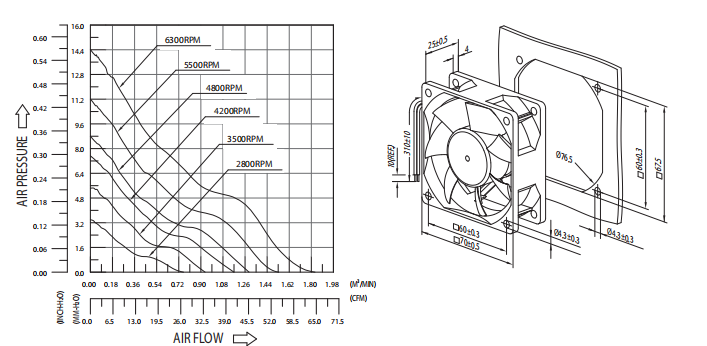

Product P&Q Curve Dimension Drawing
