| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBTD0428_2H | -FG / RD | B | 12 | 7.0 to 13.2 | 0.35 | 4.20 | 15000 | 0.577 | 20.41 | 40.19 | 1.582 | 54.5 | 70000 |
| DBTD0428_2U | -FG / RD | B | 12 | 7.0 to 13.2 | 0.45 | 5.40 | 17000 | 0.652 | 23.04 | 45.84 | 0.549 | 56.8 | 70000 |
| DBTD0428_2S | -FG / RD | B | 12 | 7.0 to 13.2 | 0.70 | 8.40 | 19000 | 0.734 | 25.92 | 55.95 | 1.805 | 59.0 | 70000 |
| DBTD0428_2F | -FG / RD | B | 12 | 7.0 to 13.2 | 0.90 | 10.8 | 21000 | 0.813 | 28.73 | 67.36 | 2.652 | 61.3 | 70000 |
| DBTD0428_2G | -FG / RD | B | 12 | 7.0 to 13.2 | 1.00 | 12.0 | 23000 | 0.885 | 31.27 | 74.76 | 2.943 | 63.5 | 70000 |

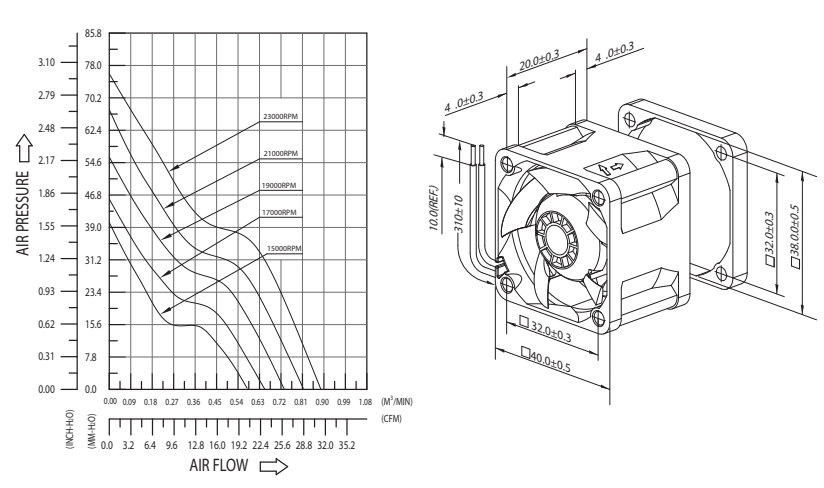

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
