| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBTC0638_2S | -FG / RD | B | 12 | 10.8 to 13.2 | 1.54 | 18.48 | 17500 | 1.857 | 65.74 | 83.07 | 3.27 | 65.5 | 70000 |

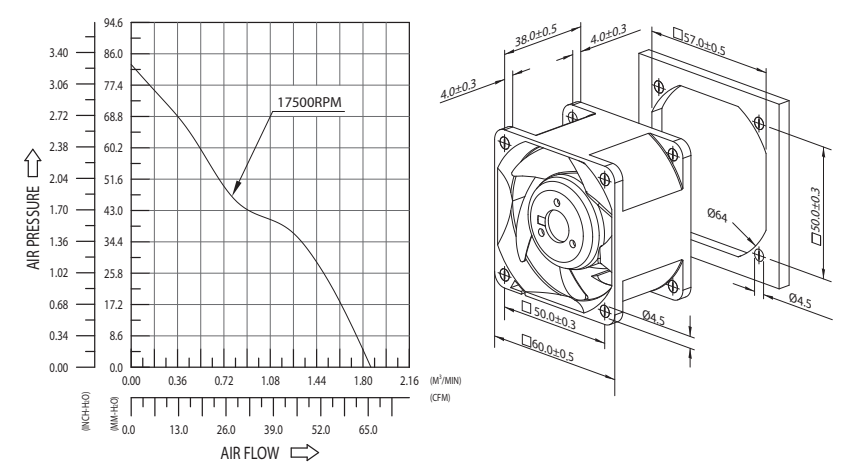

| Product P&Q Curve Dimension Drawing |
|||||||||||||
|
|
|||||||||||||
