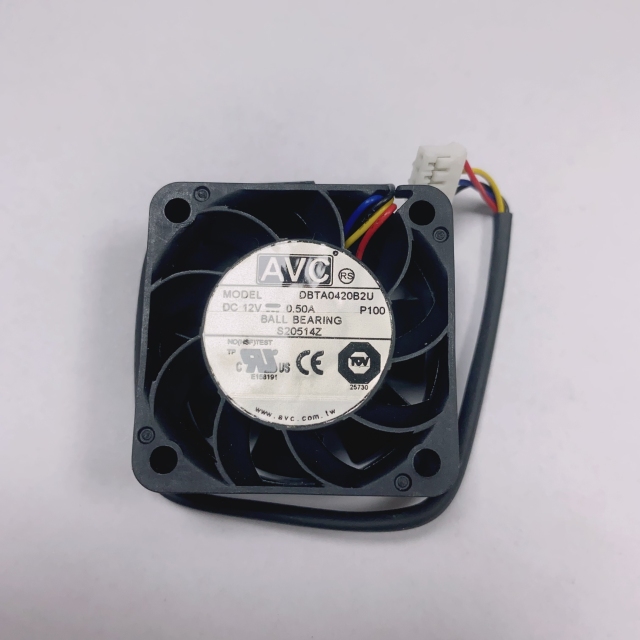

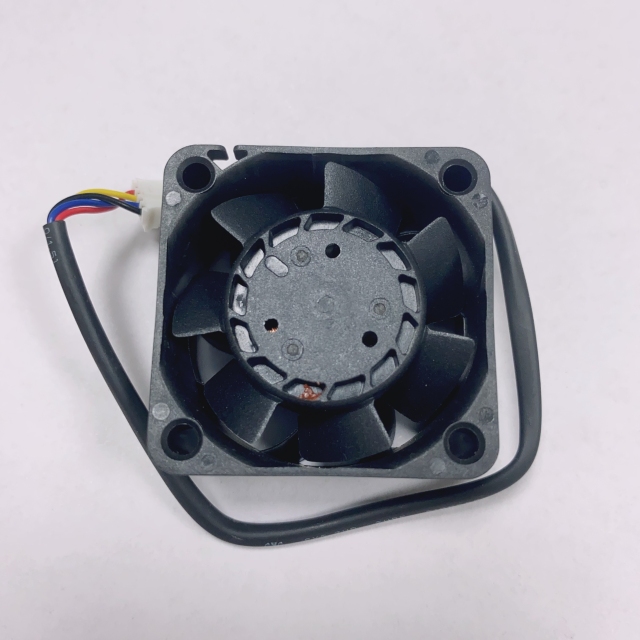

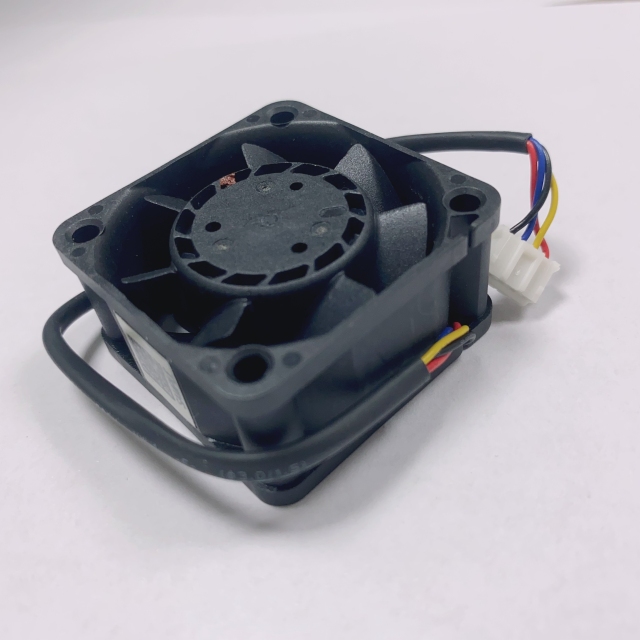

DBTA0420B2U
DC AXIAL FANSDBTA40x40x20 mmSERIES - Material: lmpeller & Frame: Plastic (UL 94V-0)
- Lead Wires: UL1061 AWG #28or Equivalent
- lmpeller:7 Blades
- Rotational direction CCW view from front face
- Weight: 25g (0.88 02)

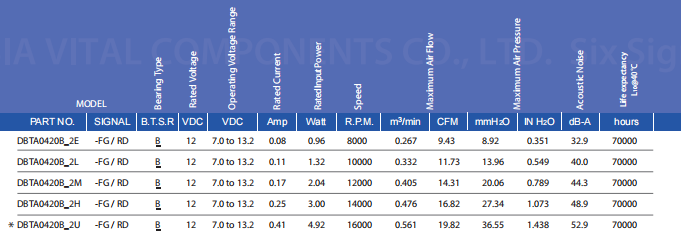

Specification

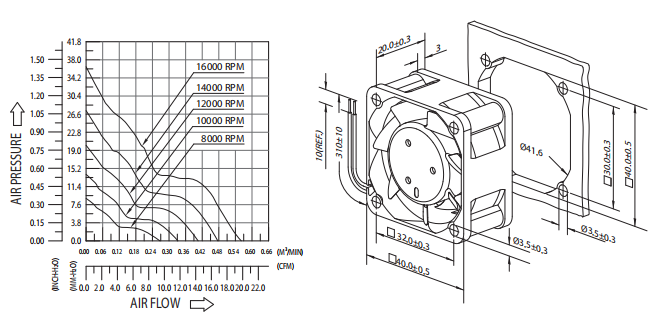

Product P&Q Curve Dimension Drawing
