| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBTA0428_2L | -FG / RD | B | 12 | 7.0 to 13.8 | 0.11 | 1.32 | 8500 | 0.349 | 12.34 | 10.60 | 0.417 | 38.7 | 120000 |
| DBTA0428_2M |
-FG / RD | B | 12 | 7.0 to 13.8 | 0.13 |
1.56 |
10000 |
0.406 |
14.34 |
14.18 |
0.558 |
42.4 |
110000 |
| DBTA0428_2H |
-FG / RD | B | 12 | 7.0 to 13.8 | 0.35 |
4.20 |
14500 |
0.586 |
20.68 |
26.33 |
1.037 |
52.9 |
90000 |
| DBTA0428_2U |
-FG / RD | B | 12 | 7.0 to 13.8 | 0.45 |
5.40 |
16000 |
0.663 |
23.42 |
35.80 |
1.409 |
55.4 |
70000 |
| DBTA0428_2S |
-FG / RD | B | 12 | 7.0 to 13.8 | 0.62 |
7.44 |
18000 |
0.754 |
26.64 |
44.52 |
1.753 |
58.0 |
70000 |

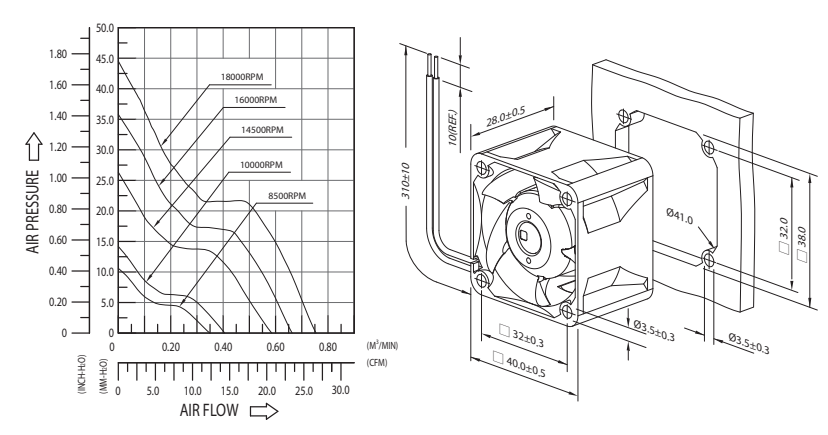

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
