| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBTA0420B_2E | -FG/RD | B | 12 | 5.0 to 13.2 | 0.14 | 1.68 | 10000 | 0.315 | 11.14 | 13.63 | 0.537 | 40.0 | 70000 |
| DBTA0328B_2L | -FG/RD | B | 12 | 5.0 to 13.2 | 0.18 | 2.16 | 12000 | 0.387 | 13.70 | 20.14 | 0.793 | 46.0 | 70000 |
| DBTA0328B_2M | -FG/RD | B | 12 | 5.0 to 13.2 | 0.24 | 2.88 | 14000 | 0.434 | 15.38 | 27.50 | 1.083 | 50.0 | 70000 |
| DBTA0328B_2H | -FG/RD | B | 12 | 5.0 to 13.2 | 0.32 | 3.84 | 16000 | 0.494 | 17.48 | 37.05 | 4.459 | 54.0 | 70000 |
| DBTA0328_2U | -FG/RD | B | 12 | 5.0 to 13.2 | 0.42 | 5.04 | 18000 | 0.558 | 19.75 | 46.72 | 1.839 | 57.0 | 70000 |
| DBTA0328B_2S |
-FG/RD | B | 12 | 5.0 to 13.2 | 0.55 |
6.6 |
20000 |
0.629 |
22.21 |
58.92 |
2.482 |
58.0 |
70000 |

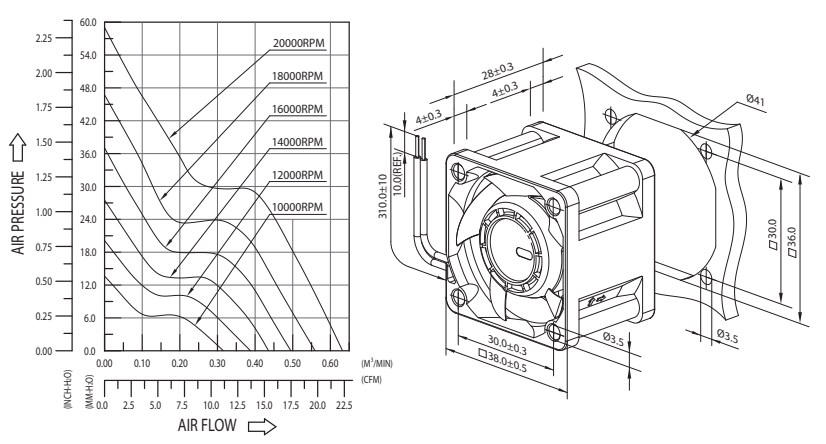

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
