DBPG0938
DBPG SERIES
92x92x38 mm 12v,48v - Material: lmpeller & Frame: Plastic (UL 94V-0)
- Lead Wires: UL 1007 AWG #24 or Equivalent
- Impeller: 5 Blades
- Rotational direction CCW view from front face
- Weight: 240g (8.47 02)

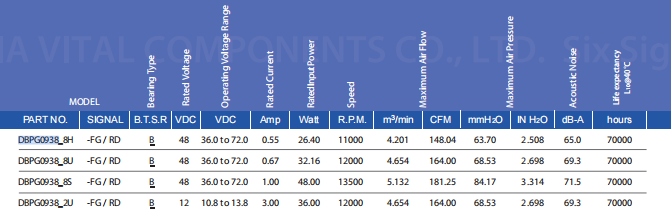

Specification

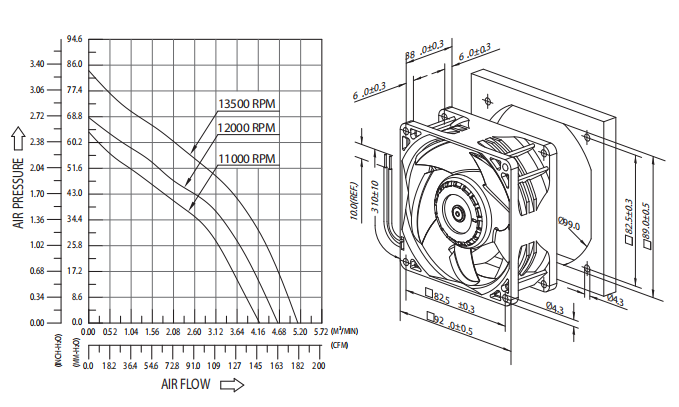

Product P&Q Curve Dimension Drawing
