| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPD0456_2U | -FG / RD | B | 12 | 10.8 to 13.2 | 0.95 | 11.4 | 24500 | 0.710 | 25.07 | 109.63 | 4.316 | 63.5 | 70000 |
|

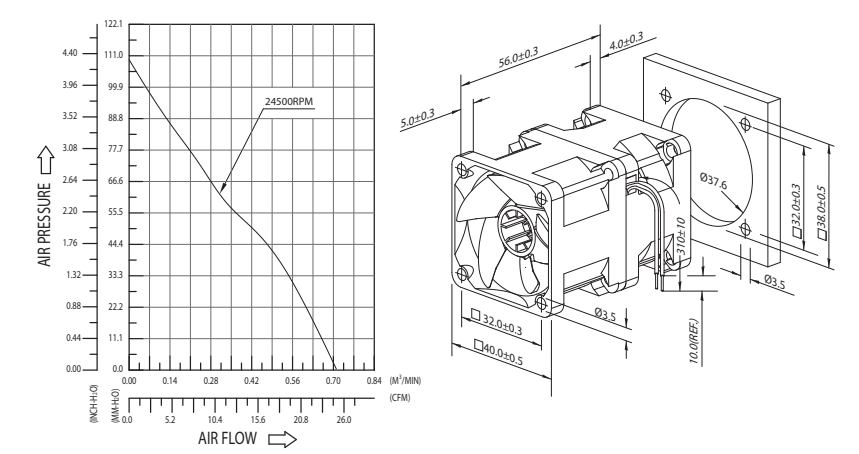

Product P&Q Curve Dimension Drawing P&Q曲线图 尺寸图 |
|||||||||||||
|
|
|||||||||||||
