| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPB0428_2E | -FG / RD | B | 12 | 7.0 to 13.2 | 0.46 | 5.52 | 17000 | 0.606 | 21.42 | 39.76 | 1.565 | 54.5 | 70000 |
| DBPB0428_2L | -FG / RD | B | 12 | 7.0 to 13.2 | 0.61 | 7.32 | 19000 | 0.696 | 24.60 | 45.21 | 1.780 | 57.5 | 70000 |
| DBPB0428_2M | -FG / RD | B | 12 | 7.0 to 13.2 | 0.79 | 9.48 | 21000 | 0.757 | 26.75 | 57.61 | 2.268 | 59.2 | 70000 |
| DBPB0428_2H | -FG / RD | B | 12 | 7.0 to 13.2 | 1.10 | 14.4 | 23000 | 0.823 | 29.06 | 69.39 | 2.732 | 62.1 | 70000 |
| DBPB0428_2U | -FG / RD | B | 12 | 7.0 to 13.2 | 1.40 | 16.8 | 24500 | 0.887 | 31.35 | 82.2 | 3.236 | 63.1 | 70000 |

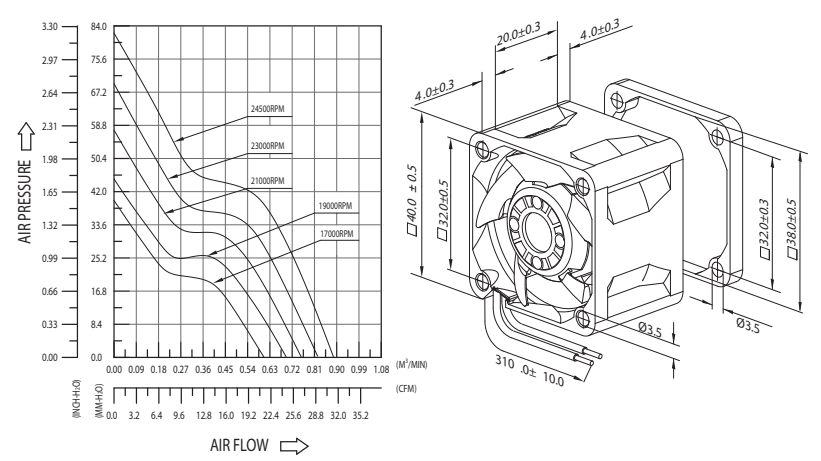

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
