| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DB04028_12L | -FG / RD | B | 12 | 7.0 to 13.2 | 0.14 | 1.68 | 8000 | 0.401 | 13.86 | 11.60 | 0.456 | 40.0 | 120000 |
| DB04028_12M | -FG / RD | B | 12 | 7.0 to 13.2 | 0.23 | 2.76 | 9500 | 0.449 | 15.85 | 17.57 | 0.692 | 45.0 | 120000 |
| DB04028_12H | -FG / RD | B | 12 | 7.0 to 13.2 | 0.38 | 4.56 | 11000 | 0.542 | 18.73 | 23.38 | 0.920 | 50.5 | 110000 |
| DB04028_12U | -FG / RD | B | 12 | 7.0 to 13.2 | 0.55 | 6.60 | 13000 | 0.673 | 23.78 | 33.65 | 1.324 | 54.0 | 100000 |
| DB04028_12S | -FG / RD | B | 12 | 7.0 to 13.2 | 0.64 | 7.68 | 15000 | 0.703 | 24.82 | 41.61 | 1.638 | 58.0 | 100000 |
|

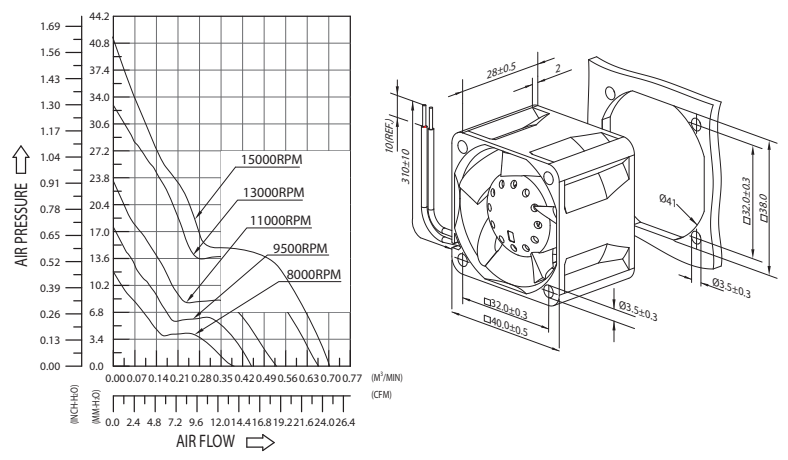

Product P&Q Curve Dimension Drawing P&Q曲线图 尺寸图 |
|||||||||||||
|
|
|||||||||||||
