| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DB03828_12L | -FG / RD |
B | 12 | 7.0 to 13.2 | 0.11 | 1.32 |
8000 |
0.267 |
9.44 |
10.02 |
0.394 |
38.0 |
120000 |
| DB03828_12M | -FG / RD | B | 12 | 7.0 to 13.2 | 0.14 | 1.68 |
10000 |
0.353 |
12.46 |
15.88 |
0.625 |
44.0 |
120000 |
| DB03828_12H | -FG / RD | B | 12 | 7.0 to 13.2 | 0.29 |
3.48 |
13000 |
0.462 |
16.30 |
25.91 |
1.020 |
51.0 |
110000 |
| DB03828_12U | -FG / RD | B | 12 | 7.0 to 13.2 | 0.50 | 6.00 | 15000 | 0.543 | 19.16 | 34.71 | 1.367 | 55.0 | 100000 |
| DB03828_12S | -FG / RD | B | 12 |
7.0 to 13.2 |
0.65 |
7.80 |
17000 |
0.589 |
20.83 |
42.41 |
1.669 |
59.0 |
90000 |

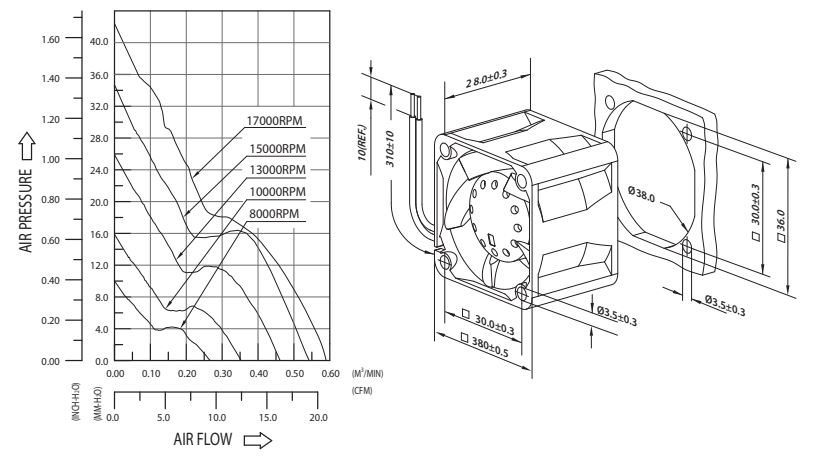

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
