| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DATB0625_2E | -FG/RD | B | 12 | 7.0 to 13.2 | 0.11 | 1.32 | 4200 | 0.659 | 23.29 | 5.23 | 0.206 | 34.2 | 150000 |
| DATB0625_2L | -FG/RD | B | 12 | 7.0 to 13.2 | 0.15 | 1.80 | 5000 | 0.785 | 27.73 | 7.42 | 0.292 | 38.3 | 140000 |
| DATB0625_2M | -FG/RD | B | 12 | 7.0 to 13.2 | 0.22 | 0.64 | 6000 | 0.954 | 33.68 | 10.46 | 0.412 | 42.6 | 140000 |
| DATB0625_2H | -FG/RD | B | 12 | 7.0 to 13.2 | 0.33 | 3.96 | 6800 | 1.104 | 38.98 | 13.20 | 0.520 | 46.2 | 105000 |
| DATB0625_2U | -FG/RD | B | 12 | 7.0 to 13.2 | 0.45 | 5.40 | 7400 | 1.203 | 42.49 | 16.00 | 0.63 | 48.9 | 105000 |
| DATB0625_2S | -FG/RD | B | 48 | 7.0 to 13.2 | 0.54 | 6.48 | 8200 | 1.324 | 46.76 | 19.40 | 0.764 | 50.6 | 70000 |
| DATB0625_2F | -FG/RD | B | 48 | 7.0 to 13.2 | 0.72 | 8.64 | 9000 | 1.475 | 52.08 | 23.90 | 0.941 | 54.0 | 70000 |

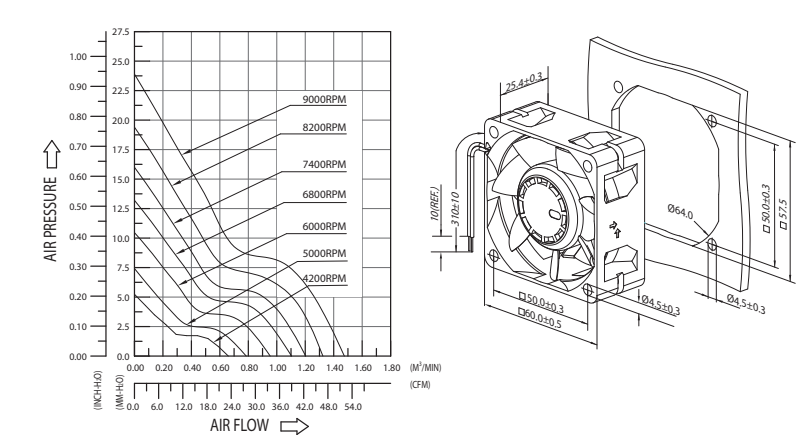

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
