| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DATA1551-8L | -FG/RD | B | 48 | 24.0 to 60.0 | 0.54 | 25.9 | 3700 | 7.35 | 259.5 | 25.1 | 0.99 | 59.0 | 110000 |
| DATA1551-8M | -FG/RD | B | 48 | 24.0 to 60.0 | 0.82 | 39.4 | 4300 | 8.64 | 305.1 | 34.6 | 1.36 | 63 | 1000000 |
| DATA1551-8H | -FG/RD | B | 48 | 24.0 to 60.0 | 1.15 | 55.2 | 4900 | 9.91 | 350.0 | 44.7 | 1.76 | 66.0 | 90000 |
| DATA1551-8U | -FG/RD | B | 48 | 24.0 to 60.0 | 1.65 | 79.2 | 5500 | 11.15 | 393.7 | 55.1 | 2.17 | 68.5 | 70000 |

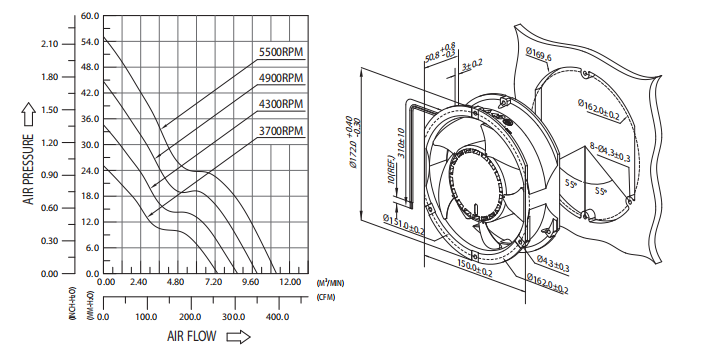

| Product P&Q Curve Dimension Drawing |
|||||||||||||
 |
|||||||||||||
