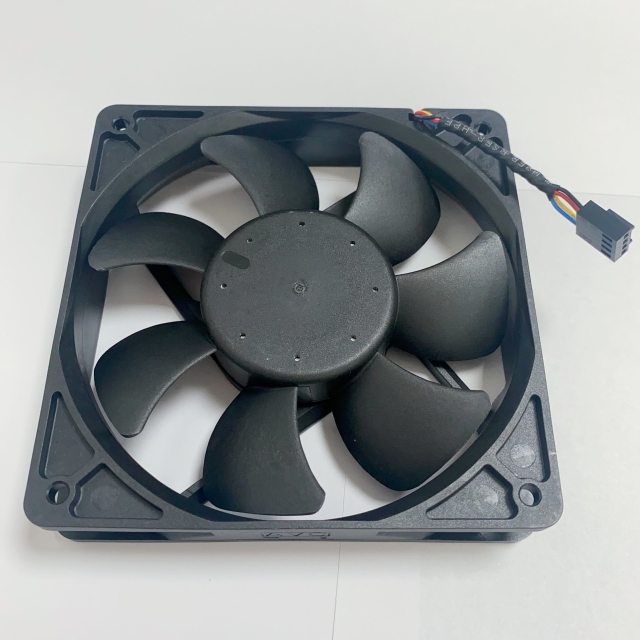

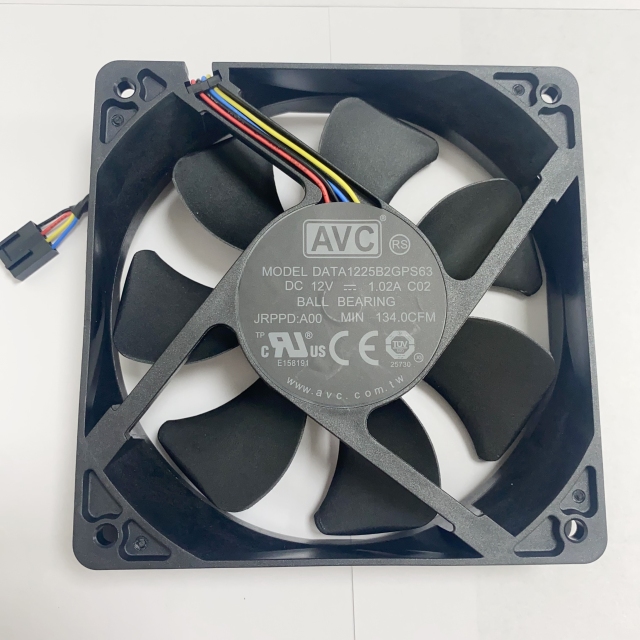

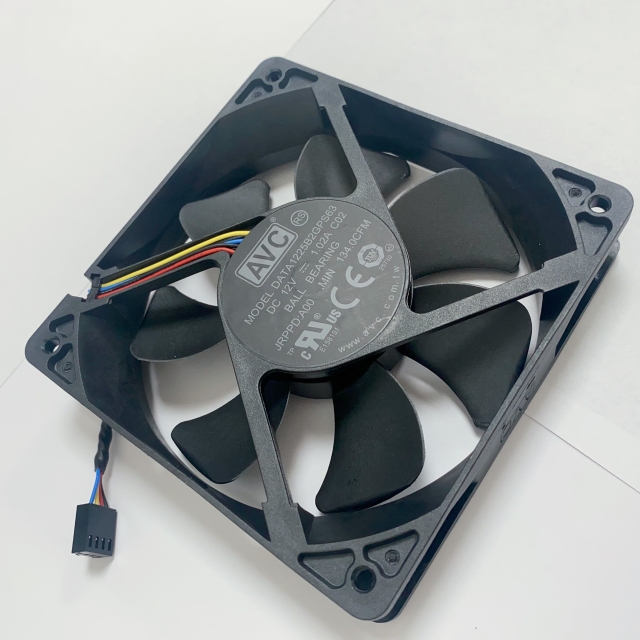

DATA1225
DATA SERIES120x120x25 mm - Mlaterial: lmpeller & Frame: Plastic (UL 94V-0)
- Lead Wires. UL 1007 AWG #24 or Equivalent
- Impeller: 7 Blades
- Rotational direction CCW view from front face
- Weight: 230g (8.11 0Z)

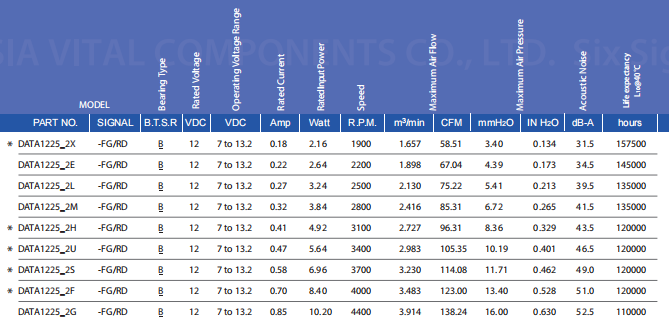

Specification

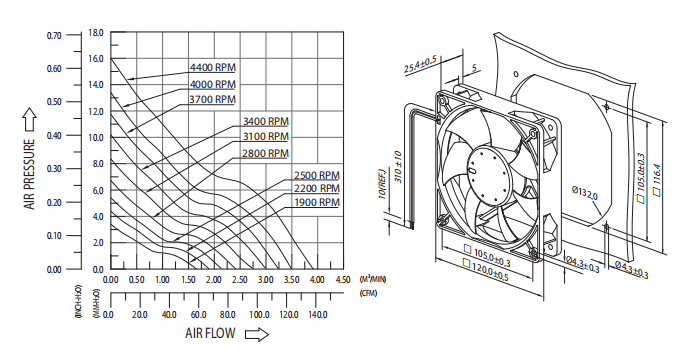

Product P&Q Curve Dimension Drawing
