| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DAPA0625_2L | -FG/RD | B | 12 | 7.0 to 13.2 | 0.09 | 1.08 | 4000 | 0.46 | 16.21 | 3.25 | 0.128 | 32.9 | 70000 |
| DAPA0625_2M | -FG/RD | B | 12 | 7.0 to 13.2 | 0.16 | 1.92 | 6000 | 0.69 | 24.32 | 7.28 | 0.287 | 40.0 | 70000 |
| DAPA0625_2H | -FG/RD | B | 12 | 7.0 to 13.2 | 0.26 | 3.12 | 8000 | 0.92 | 32.42 | 12.95 | 0.510 | 47.1 | 70000 |
| DAPA0625_2U | -FG/RD | B | 12 | 7.0 to 13.2 | 0.44 | 5.28 | 10000 | 1.15 | 40.53 | 20.23 | 0.796 | 52.0 | 70000 |
| DAPA0625_2S | -FG/RD | B | 12 | 7.0 to 13.2 | 0.63 | 7.56 | 12000 | 1.44 | 48.77 | 29.00 | 1.140 | 55.9 | 70000 |
| DAPA0625_8L |
-FG/RD | B | 48 | 36.0 to 72.0 | 0.04 |
1.92 |
4000 |
0.46 |
16.21 |
3.25 |
0.128 |
32.9 |
70000 |
| DAPA0625_8M |
-FG/RD | B | 48 | 36.0 to 72.0 | 0.05 |
2.40 |
6000 |
0.69 |
24.32 |
7.28 |
0.287 |
40.0 |
70000 |
| DAPA0625_8H |
-FG/RD | B | 48 | 36.0 to 72.0 | 0.07 |
3.36 |
8000 |
0.92 |
32.42 |
12.95 |
0.510 |
47.1 |
70000 |
| DAPA0625_8U |
-FG/RD | B | 48 | 36.0 to 72.0 | 0.12 |
5.76 |
10000 |
1.15 |
40.53 |
20.23 |
0.796 |
52.0 |
70000 |
| DAPA0625_8S |
-FG/RD | B | 48 | 36.0 to 72.0 | 0.16 |
7.56 |
12000 |
1.44 |
48.77 |
29.00 |
1.140 |
55.9 |
70000 |

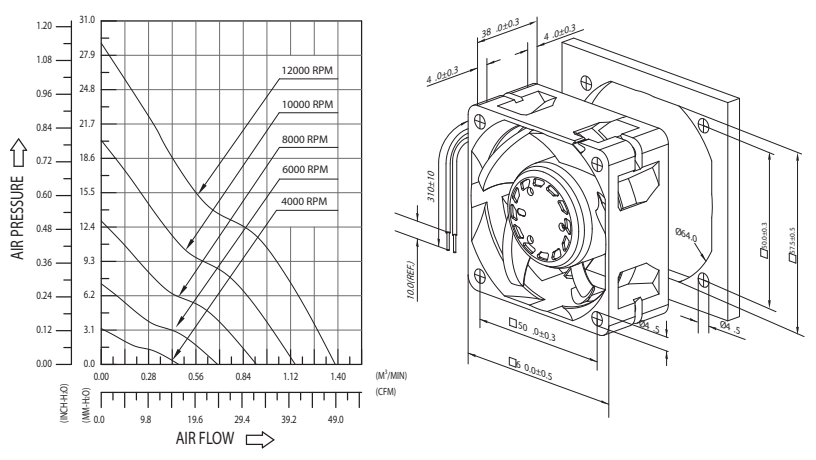

| Product P&Q Curve Dimension Drawing P&Q 曲线 尺寸图 |
|||||||||||||
|
|
|||||||||||||
