| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DA06015_12E | -FG/RD | R |
12 | 7.0 to 13.2 | 0.111 | 1.32 | 3000 | 0.417 | 14.73 | 2.05 | 0.081 | 26.1 | 70000 |
| DA06015_12L | -FG/RD | R | 12 | 7.0 to 13.2 | 0.14 | 1.68 | 3600 | 0.515 | 18.18 | 3.01 | 0.119 | 30.3 | 70000 |
| DA06015_12M | -FG/RD | R | 12 | 7.0 to 13.2 | 0.18 | 2.16 | 4200 | 0.609 | 21.5 | 4.01 | 0.158 | 35.1 | 70000 |
| DA06015_12H | -FG/RD | R | 12 | 7.0 to 13.2 | 0.24 | 2.88 | 4800 | 0.716 | 25.30 | 5.26 | 0.207 | 39.1 | 70000 |
| DA06015_12U | -FG/RD | R | 12 | 7.0 to 13.2 | 0.35 | 4.20 | 5400 | 0.806 | 28.48 | 6.60 | 0.260 | 40.8 | 70000 |

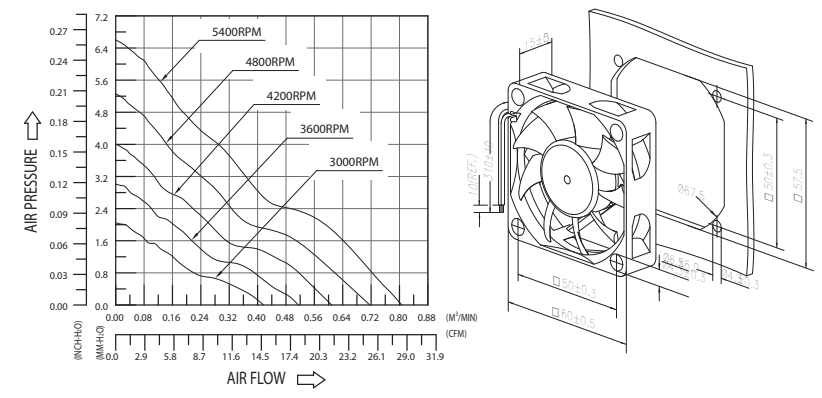

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
