| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DA06010_12E | -FG/RD | B | 12 | 7.0 to 13.2 | 0.10 | 1.20 | 3000 | 0.382 | 13.49 | 1.67 | 0.066 | 24.3 | 70000 |
| DA06010_12L | -FG/RD | B | 12 | 7.0 to 13.2 | 0.17 | 2.04 | 3600 | 0.452 | 15.98 | 2.43 | 0.096 | 28.9 | 70000 |
| DA06010_12M | -FG/RD | B | 12 | 7.0 to 13.2 | 0.20 | 2.40 | 4200 | 0.579 | 20.46 | 3.39 | 0.134 | 33.4 | 70000 |
| DA06010_12H | -FG/RD | B | 12 | 7.0 to 13.2 | 0.29 | 3.48 | 4800 | 0.673 | 23.78 | 4.30 | 0.169 | 37.3 | 70000 |
| DA06010_12U | -FG/RD | B | 12 | 7.0 to 13.2 | 0.40 | 4.80 | 5400 | 0.716 | 25.29 | 5.48 | 0.216 | 40.0 | 70000 |

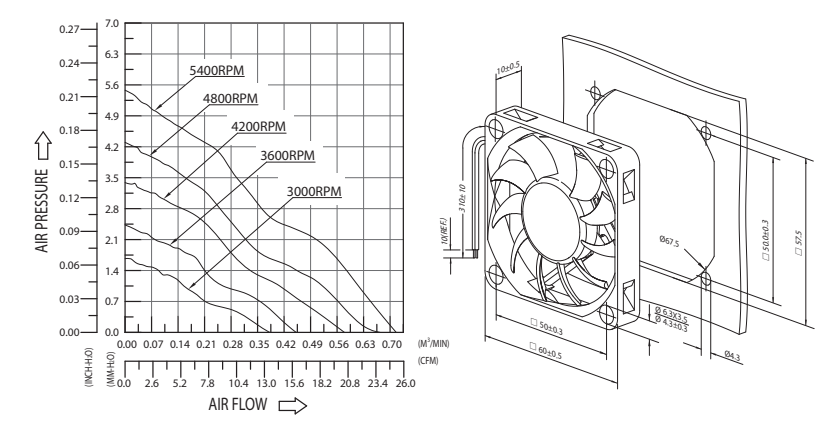

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
